FLANGES - Blind Flanges 316L





Specifications
• 316L stainless steel construction
• Drillings depending on application
• Radiused angles
• Serrated gasket contact area

Options, Accessories & Related Products
• Other diameter blind flanges
• Alternative material (Aluminum, 304L, 904L…)
• Adaptor flanges & weld-in flanges
• Screw kits
• Gaskets
HALAR® coating for corrosive products



Image Description

Ext  Diam

Thick Drillings  Part # PU IT Price/Item

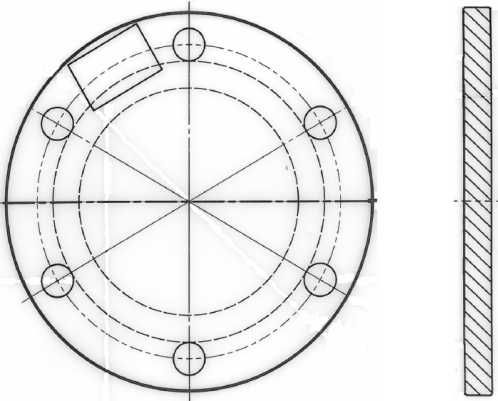

Blind flange 127mm  8.5mm 6x11xPCD105mm  1190010000 1 FLA /each

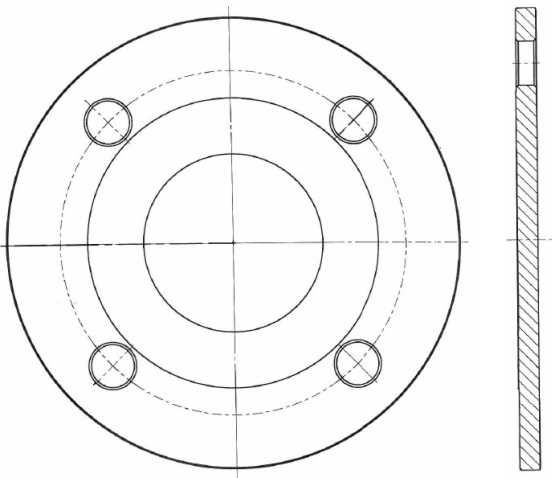

Blind flange 1.1/2" 150mm 8.5mm 4x18xPCD110mm 1191580000 1 FLA /each

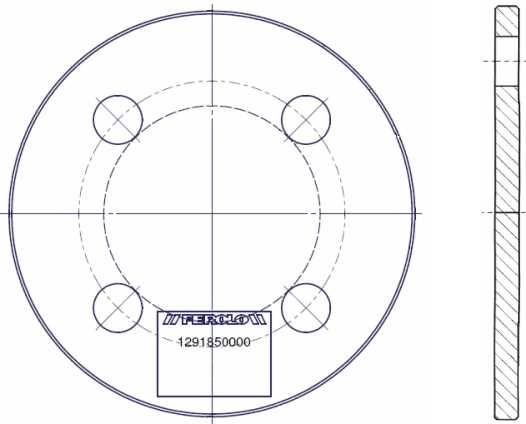

Blind flange 1.1/2" 150mm 8.5mm 4x18xPCD98.5mm 1291850001 1 FLA /each
Blind flange 2" 165mm 8.5mm 4x18xPCD125mm 1712121601 1 FLA /each
Blind flange 2.1/2" 190mm 8.5mm  4x18xPCD145mm 1190480000 1 FLA /each
Blind flange 3" 200mm 8.5mm 4x18xPCD160mm 1285490001 1 FLA /each

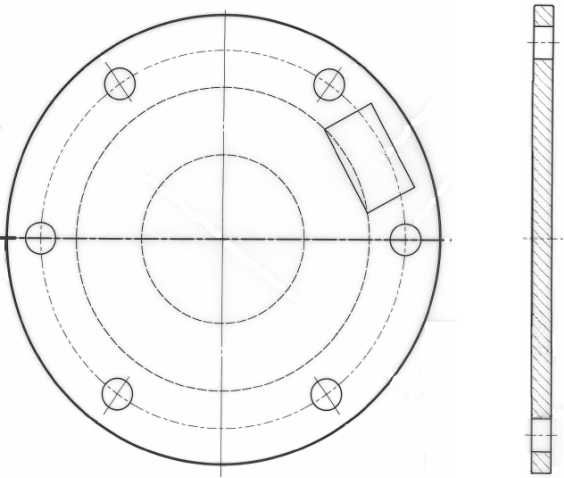

Blind flange 200mm 8.5mm 6x14xPCD168mm 1190130000 1 FLA /each

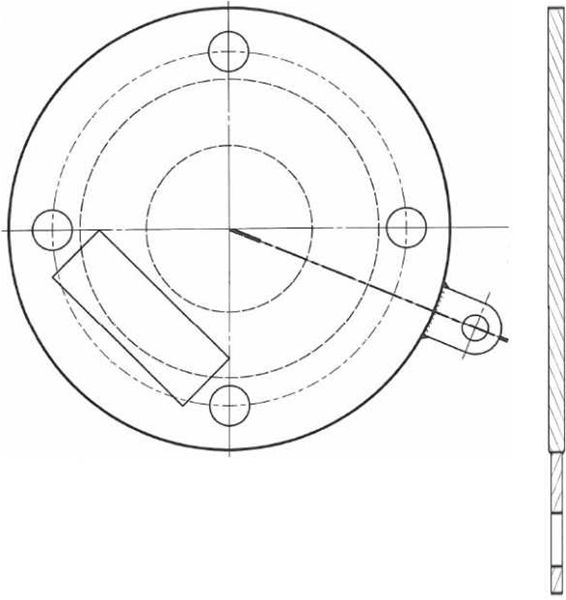

Blind flange with pivot pin 200mm 8.5mm 4x18xPCD160mm 1192090000 1 FLA /each

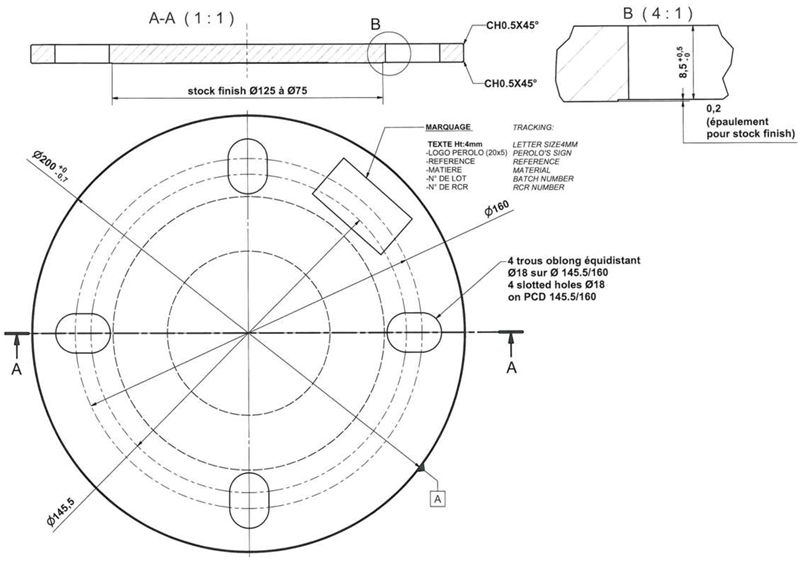

Blind flange with slotted holes 200mm 8.5mm 4x18xPCD145,5/160mm 1193090000 1 FLA /each

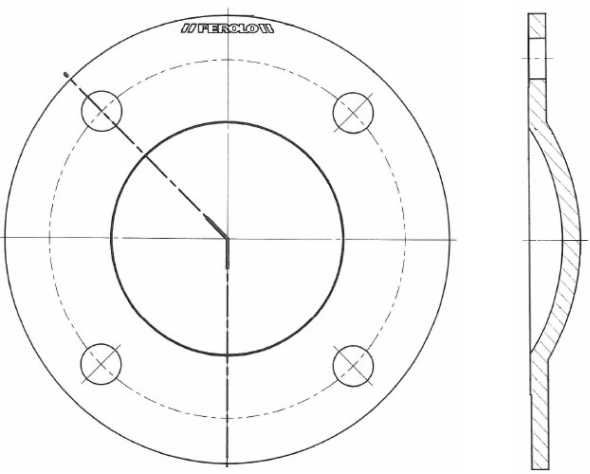

Blind flange 3" dished 200mm 8.5mm 4x18xPCD160mm 1190410000 1 FLA /each

• PU: Packing Unit • IT: Item Type
