FLANGES

FLANGES - Adaptor Flanges

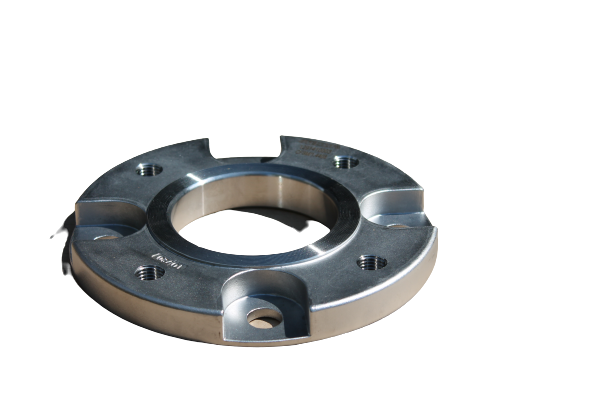

Perolo 316L stainless adaptor flanges are designed to be placed in between weld-in flanges and fittings on top of tank containers, IBC’s, road tankers, rail tank cars and storage tanks.





Features


• 316L stainless steel construction
• Drillings depending on application
• Radiused angles
• Serrated gasket contact area


Options & Related Products :


• Other adaptor flanges
• Halar® coating for corrosive fluids
• Other material (Aluminum, 304L, 904L…)
• Weld-in flanges & blind flanges
• Screw kits
• Gaskets



Image  Description

Ext  Diam

Int  Diam

Thick Drillings  Part # PU IT Price/Item

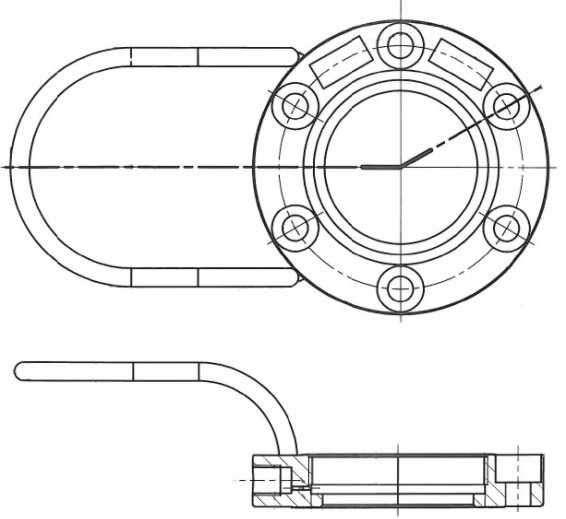

Bursting Disc & Pressure Gauge Adaptor
for 2.5" BSP Safety Relief Valve with Gauge Protector
127mm 2.5" BSP threaded  22.5mm 6x11xPCD105mm 1191150000 1 FLA /each

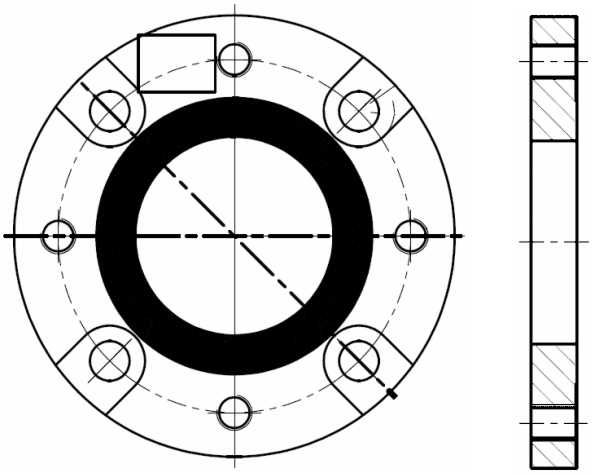

Clamping flange for 3" clamped butterfly valve 200mm 89mm  22mm 4x18xPCD160mm
4xM16xPCD160mm Spot Face
1291410003 1 FLA /each

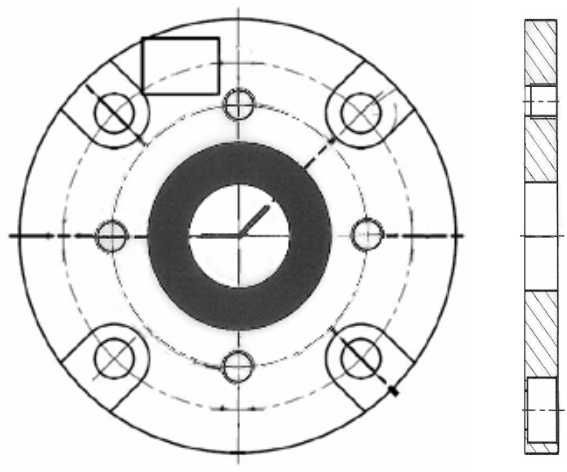

3" to 2" Top Outlet Adaptor 200mm 50mm 22mm 4xM16xPCD110mm
4x18xPCD160mm Spot Face
1192860000 1 FLA /each

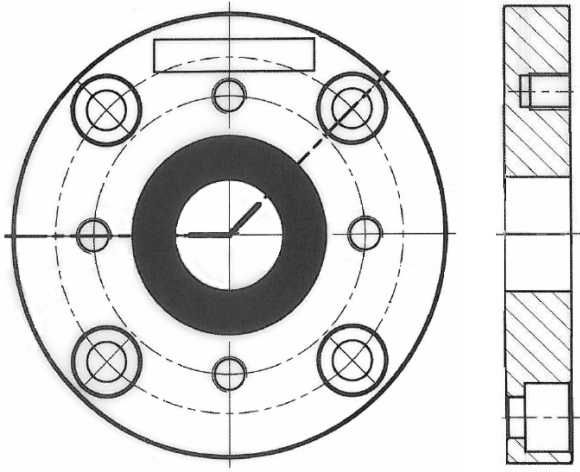

3" to 2" Top Outlet Adaptor 200mm 50mm 28mm 4xM16xPCD125mm
4x18xPCD160mm
1191790000 1 FLA /each

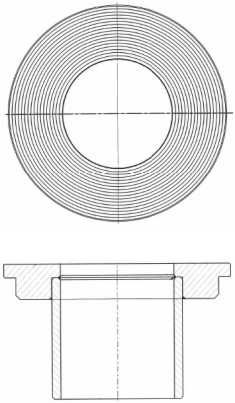

2" Siphon Tube Guide Ring  Ext. 104.5mm
Recess 93.5mm
52.5mm 17mm   1112672000 1 FLA /each

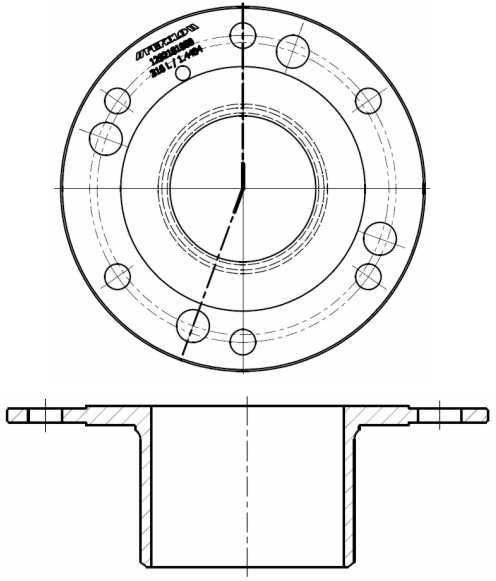

3" Siphon Tube Guide 200mm 93mm 8mm 4x18xPCD160mm
6x14xPCD168mm
1292181000 1 FLA /each

• PU: Packing Unit • IT: Item Type
