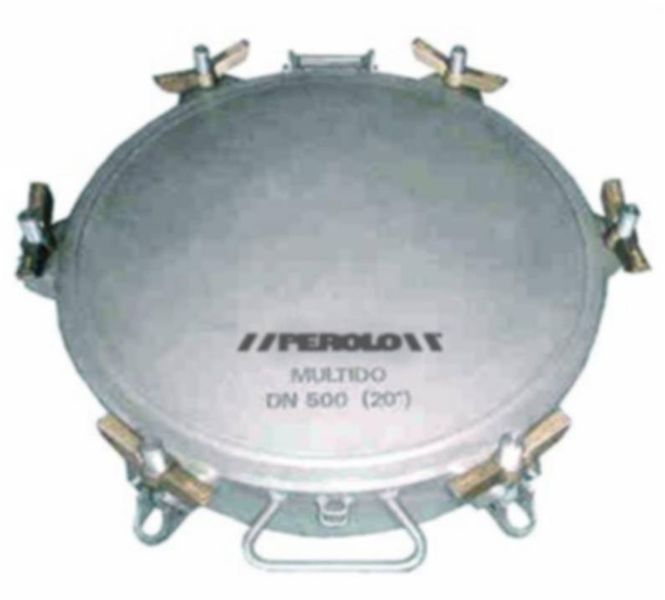

MANLIDS - MULTIDO™ DN 500 20” 6 Points Low and Standard

Features

• Standard and low profile design available.
• 316L stainless steel construction
• 8 or 6 fastening points
• Radiuses 920mm to 1250mm.
• Working pressure: 4 bar
• Test pressure: 6 bar
• Light weight: 40kg.
• Complete range of seals available.
• Any adjustable protrusion with or without compensated ring.
• Trapezoidal seal groove ensures perfect tightness.
• Design temperature: - 40°C +203°C
• AAR and TIR sealing options available.
• HALAR® coating option available.
• Conforms to IMDG, ADR and RID codes
• Lloyd’s Register approval.

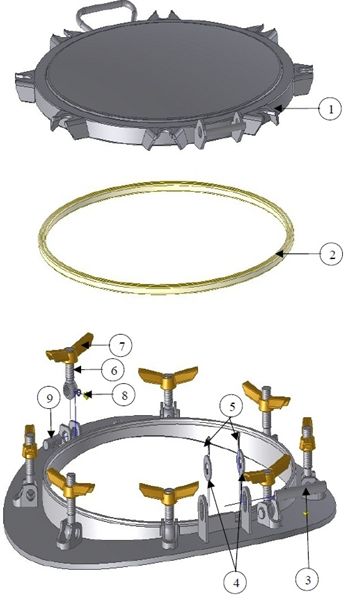

Dwg Pos Part # Description PU IT Price/Item

MS53D66D0E00SB1
Complete Standard Profile
1 MAN
/each
  MS53D66E0G05SB1
Complete Low Profile
1 MAn
/each

VS53D66D0E0000S
Neckring Standard Profile
1 MAN
/each

VS53D66E0G10505
Neckring Low Profile
1 MAN
/each
1

1293561000

1115091000

6 Points Standard Profile Cover

6 Points Low Profile Cover

1

1

MAN

MAN

/each

/each

2

1113750019

1113750014

Coverlid Seal in PTFE Braicled 14x14

Coverlid Seal in Nitrile encapsulated PTFE 14x14

1

1

MAN

MAN

/each

/each

3 4 5
1213689100
Hinge Pin Kit: Hinge pin axis + washer + pin V4-28
1 MAN
/each
6 7 8 9

1293869100

1293869200

Swingbolt Assembly SS Eyebolt 83 x 16 mm + brass nut

Swingbolt Assembly SS Eyebolt 58 x 16 mm + brass nut

1

1

MAN

MAN

/each

/each
