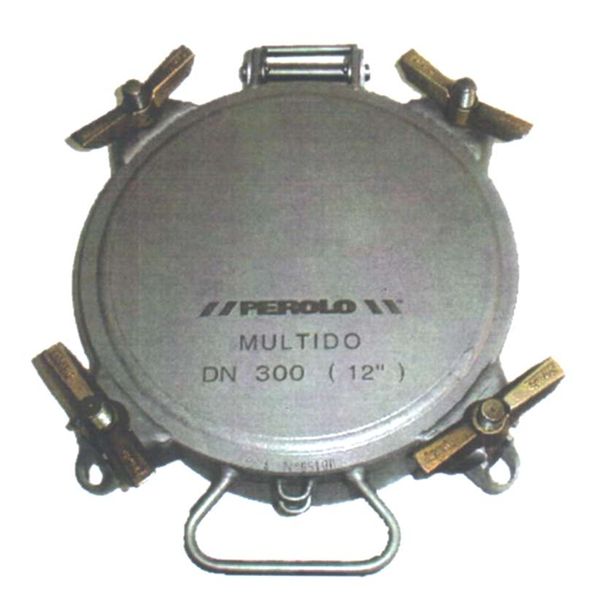

MANLIDS - MULTIDO™ DN 300 12’’ Low and Standard

Features

• Standard and low profile design available.
• 316L stainless steel construction
• 4 fastening points
• Working pressure: 4 bar
• Test pressure: 6 bar
• Radiuses 920mm to 1250mm.
• Design temperature: 160°C
• Light weight: 16kg.
• Any adjustable protrusion with or without compensated ring.
• Complete range of seals available.
• Trapezoidal seal groove ensures perfect tightness.
• AAR and TIR sealing options available.
• HALAR® coating option available.
• Conforms to IMDG, ADR and RID codes
• Lloyd’s Register approval.

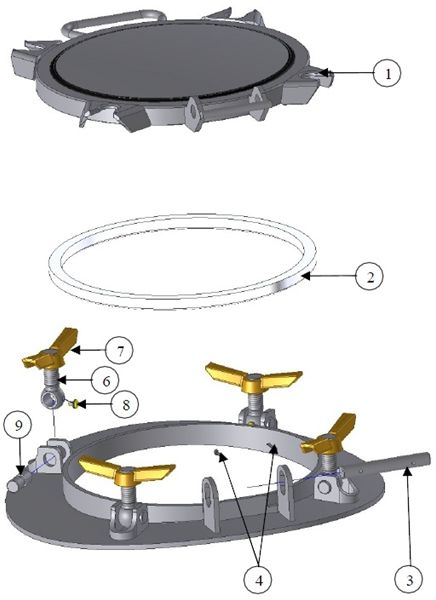

Dwg Pos Part # Description PU IT Price/Item

MS34W46D0E00SB5
Complete Standard Profile
1 MAN
/each
  MS34D46F0F00SB4
Complete Low Profile
1 MAn
/each

VS34W46D0E0000S
Neckring Standard Profile
1 MAN
/each

VS34D46F0F1000S
Neckring Low Profile
1 MAN
/each
1

1213581000

1113871000

4 Points Standard Profile Cover

4 Points Low Profile Cover

1

1

MAN

MAN

/each

/each

2
1113750012
Coverlid Seal in PTFE Braicled 15x14
1 MAN
/each
3 4 5
1213689100
Hinge Pin Kit: Hinge pin axis + washer + pin V4-28
1 MAN
/each
6 7 8 9

1293869100

1293869200

Swingbolt Assembly SS Eyebolt 83 x 16 mm + brass nut

Swingbolt Assembly SS Eyebolt 58 x 16 mm + brass nut

1

1

MAN

MAN

/each

/each
