BUTTERFLY VALVES - Tankfly™ 3 " Flanged


The Perolo TANKFLY™ 3" Flanged butterfly valve is designed to clamp between two flanges or directly into the pipe work.







Features :



  • Inlet provided designed to fit on French or English connection
  • Outlet provided with 4 slotted holes
  • Body 316 SS with PTFE seals
  • Weight 7.08 Kg
  • Test pressure 10 bar (145 PSI)
  • Design Pressure WAWP 6 bar (87 PSI)
  • Design Temperature -20/180ºC (-4/374ºF)

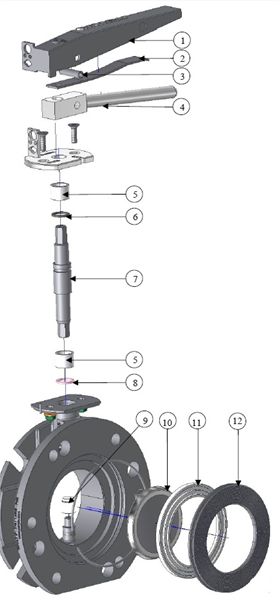

Dwg Pos Part # Description PU IT Price/Item

1112070000 Complete 14mm 6-hole, PCD 168mm 1 BUV /each
1 3
 1112079200 Handle Kit
 1 BUV /each
2 1285589100 Plane Spring
 1 BUV /each
4
 1285589300 Handle Lever
 1 BUV /each
5 9
 1285579800 Bush Kit
 1 BUV /each
6 8 1285579907 Spindle O-Ring Kit
 1 BUV /each
7
 1285579700 Spindle
1 BUV /each
9 10 1285579300 Closure Plate Kit
 1 BUV /each
9 1285570004 Closure Plate Bush
 1 BUV /each
10 1285572000 Closure Plate
 1 BUV /each
11 1285570014 Closure Plate Seal 1 BUV /each
12 1285579500 Closure Plate Clamp 1 BUV /each


Dwg Pos: Drawing Position • PU: Packing Unit • IT: Item Type
