BUTTERFLY VALVES - Tankfly™ 3" Clamped



The Perolo TANKFLY™ 3" Clamped butterfly valve is designed to clamp between two flanges or directly into the pipe work.











Features :



  • Designed to clamp between two flanges or directly onto the pipework
  • Left hand operation with TIR to handle and lug to outlet flange for pivot assembly
  • 316 SS with PTFE seals
  • Weight 2.5 kg
  • Test Pressure 10 Bar (145 PSI)
  • Design Pressure MAPW 6 Bar (87 PSI)
  • Design Temperature 190ºC ( 374ºF)

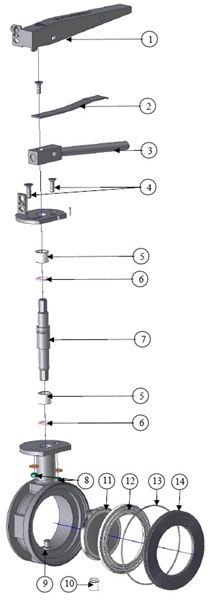

Dwg Pos Part # Description PU IT Price/Item

1285570000 Complete 1 BUV /each
1
 1285579900 Handle Kit
 1 BUV /each
2 1285589100 Plane Spring Kit
 1 BUV /each
3
 1285589300 Handle Lever Kit
 1 BUV /each
4 6 7 8 1285579600 Spindle Seals Kit
 1 BUV /each
5 10
 1285579800 Spindle bearing set 1 BUV /each
7
 1285579700 Spindle
1 BUV /each
10 11 1285589300 Closure Plate Kit
 1 BUV /each
11 1285572000 Closure Plate
 1 BUV /each
12 1285570014 Closure Plate Seal
 1 BUV /each
13 14 1285579500 Closure Flange 1 BUV /each


Dwg Pos: Drawing Position • PU: Packing Unit • IT: Item Type
