BUTTERFLY VALVES - Tankfly™ 2" Flanged



The Perolo TANKFLY™ 2" Flanged butterfly valve is designed for use as an airline on tank containers, road tankers, rail tank cars and static tanks. It has 4 x 18 mm drillings on a 125 mm PCD on the inlet flange and 4 slotted holes on the outlet flange.





Features :


  • 2" Inlet flange, slotted to suit 2" BSTD minimum
  • Presure gauge connection, guard and TIR facility to handle
  • 316 SS with PTFE seals
  • Weight 4.6 kg
  • Test Pressure 12.5 Bar (180 PSI)
  • Design Pressure MAPW 6.9 Bar (100 PSI)
  • Design Temperature 190ºC ( 374ºF)

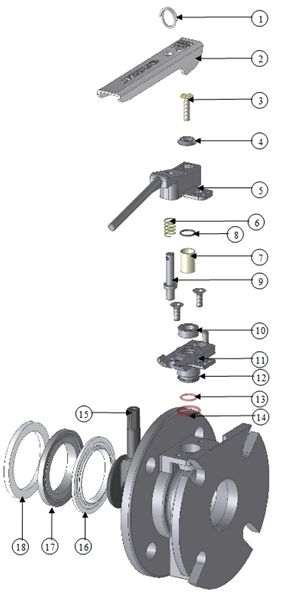

Dwg Pos Part # Description PU IT Price/Item

TF4XT14SS11 Complete 1
 BUV /each

TF4XT14S121 Complete +  pressure gauge connection/protection 1
 BUV /each

TF4XT14P121 Complete + pressure gauge connection/protection + gauze 1
 BUV /each
 16 18 1112049900 Closure plate seal + Lower seal 1
 BUV /each
 8 10 11 12 13 14
 1112049200 Sleeve (O'ring + bearing) 1
 BUV /each
8 7 13 14 1112039901 Sleeve seal kit 1 BUV /each
 A 1112039800 Special tool for sleeve installation 1
 BUV /each
 15 1112039300 Closure plate (butterfly) 1
 BUV /each

1112039400 Gauze filter + retaining gauze ring 1
 BUV /each
1 2 3 4 5 6 7 9
 1112049800 Handle assembly 1
 BUV /each
16 17 18 1112045000 Closure plate seal kit 1 BUV /each


Dwg Pos: Drawing Position • PU: Packing Unit • IT: Item Type
