SAFETY VALVES - Mega Super Ventix™ 2 1/2" BSP

Perolo Mega Super Ventix™ 2 1/2" safety relief valve is designed for use on tank containers, road tankers, rail tank cars and static tanks for emergency venting in case of overpressure or excessive vacuum.

Features :

Designed for use on Tank Containers, Tank Trucks, Railcars and Static Tanks for emergency venting
Connection 2 1/2 " BSP
Flame screen standard fitted
Vacuum poppet is constructed so, that the vacuum poppet can be easily repaired or renewed.
316SS Electro Polish
Weight 2.6 kg
Main seal FEP Silicone
Handle/spindle seals AFM/PTFE

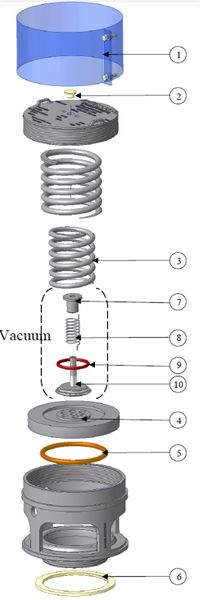

Dwg Pos	Part #	Description	PU	IT	Price/Item
	MX65F44TSC	Complete 4.4 bar	1	SAV	/each
1	1110015091 1110013091	Flame Proof Gauze Kit Flame Proof Gauze Kit (Old Model < Nov 2005)	1 1	SAV SAV	/each /each
2	7014069015	Plug	1	SAV	/each
3	1110019500	Spring Set Pressure 2,18 Bar	1	SAV	/each
3	1212849000	Spring Set Pressure 3,30 Bar	1	SAV	/each
3	1110019600	Spring Set Pressure 3,75 Bar	1	SAV	/each
3	1110019700	Spring Set Pressure 4,40 Bar	1	SAV	/each
4	1110019901	Pressure Plate for Pressure only	1	SAV	/each
4	1110019900	Pressure PLate for Pressure/Vacuum	1	SAV	/each
5	7010150054 1110019906	Pressure O-Ring Pressure O-Ring Set	1 10	SAV SAV	/each /each
5 9	1110019100	Pressure + Vacuum O-Ring	1	SAV	/each
6	1110019300 1110019200	Setting Gasket Setting Gasket Set	1 10	SAV SAV	/each /each
7	1110029905	Adjustment Nut	1	SAV	/each
8	1110019800	Spring Set Vacuum 0,21 Bar	1	SAV	/each
9	7010150083 1110179900	Vacuum 0-Ring Vacuum 0-Ring Set	1 10	SAV SAV	/each /each
10	1212630005	Vacuum Poppet	1	SAV	/each
7 8 9 10	1110019908	Vacuum Set Kit	1	SAV	/each
	1110010002	Valve Cover	1	SAV	/each
	1110011005	Valve Body	1	SAV	/each

Dwg Pos: Drawing Position • PU: Packing Unit • IT: Item Type
