Airline ATCO™ 1"1/2 " Double Connection







 Features

  • 1 1/2" BSP male inlet
  • Pressure gauge connection and TIR facility to handle
  • 316 SS with PTFE seals
  • Weight 2 kg
  • Test Pressure 12,5 Bar (180 PSI)
  • Design Pressure MAWP 6.9 Bar (100 PSI)
  • Design Temperature 190°C (374°F)
  • E 14432 certified

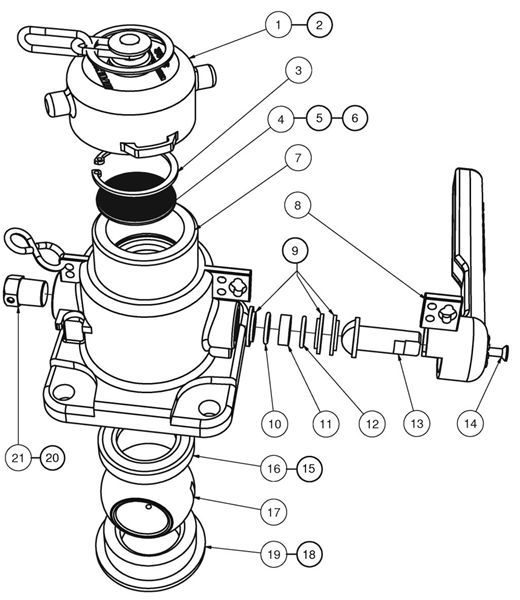

Dwg Pos Part # Description PU IT Price/Item
  AT4X6T23CS21 Complete with cap 1 BAV /each
8 1296080015 Handle 1 BAV /each
13 1296080016 Spindle 1 BAV /each
18 19 1296060010 Front Ball Seal 1 BAV /each
15 16 1296060015 Rear Ball Seal 1 BAV /each
17 1296060009 Ball 1 BAV /each
 6 1291940000 Gauze filter 1 BAV /each

DWG Pos=drawing position PU=Packing Unit IT=item typ
