FOOT VALVES - Twinco™ 3" 45 ° Bottom Discharge

Features:
• Single piece design
• Inlet flange angled at 45°.
• Full 316L stainless steel construction
• Reduced length: 153 mm
• Reduced weight: 9.5kg.
• Reduced cost of ownership
• Valve mechanism in the tank.
• Shear groove breaking system.
• Design temperature: -40°C +190°C.
• Working pressure: 4 bar.
• Test pressure: 6 bar.
• Also available with 30° angle
• Heating box option available.
• Remote control lever option available
• Fusible link option available
• AAR sealing option available
• HALAR® coating and HASTELLOY® insert options available for very corrosive products.
• Conforms to IMDG, ADR and RID standards
• Bureau Veritas approved

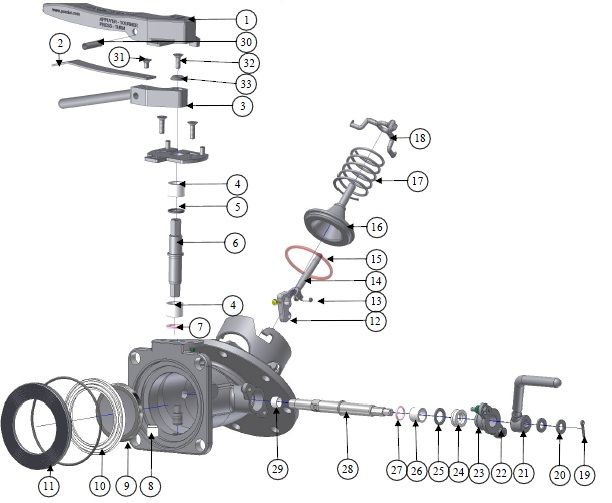

Dwg Pos Part # Description PU IT Price/Item
  TCS34S Complete 1 FOV /each
 1 2 3 30 31 32 33
1111839100
Butterfly Handle Kit
1 FOV /each
 5 7
1285579907
Butterfly Spindle Seals Kit
1 FOV /each
 4 8
1285249300 Operating Handle kit 1 FOV /each
6
1112109100 Butterfly Spindle
1 FOV /each
 8 9
1285579300 Closure Plate Kit
1 FOV /each
9
1285572000
Closure Plate
1 FOV /each
 10 1285570001 Closure Plate Seal
1 FOV /each
 8 128557004 Closure plate Bush
1 FOV /each
 11 1285579500
Closure plate Flange
1 FOV /each
 12 13 14
1111149800
Crank Block Assembly
1 FOV /each
15 7010150053 Pressure Plate O-Ring 1 FOV /each
15 16 1111149700 Pressure Plate + O-Ring 1 FOV /each
17 1285380002 Spring 1 FOV /each
18 1111140002 Bayonnet Cap 1 FOV /each
19 20 21 1285249300 Footvalve Handle Kit 1 FOV /each
28 1111149900 Spindle 1 FOV /each
12 13 14 28 1111149500 Crank Block Assembly + Spindle 1 FOV /each
19 20 23 24 25 26 27 29 1285389100 Spindle Seals Kit 1 FOV /each


Dwg Pos: Drawing Position • PU: Packing Unit • IT: Item Type
