FOOT VALVES - Neatflow™ MKII 3" 30º/45° Assembly



Perolo fully assembled and tested - incorporates one NEATFLOW™ 3"30°/45° Assembly MKII foot valve, one TANKFLY™ 3” butterfly valve and one 3” BSP threaded outlet with cap. It is designed for use on tank containers, road tankers, rail tank cars and static tanks for loading and unloading liquids while preventing any risk of leakage.







Features :


  • High flow rate which achieve short discharge time
  • High quality casting technology
  • High quality material 316 SS
  • Light in weight 8.8 Kg (18 lb)
  • Test Pressure 10 Bar (145 PSI)
  • Design Pressure MAWP 4 Bar (58 PSI)
  • Design Temperature 205ºC (401ºF)
  • USA model showed
  • Patent Pending

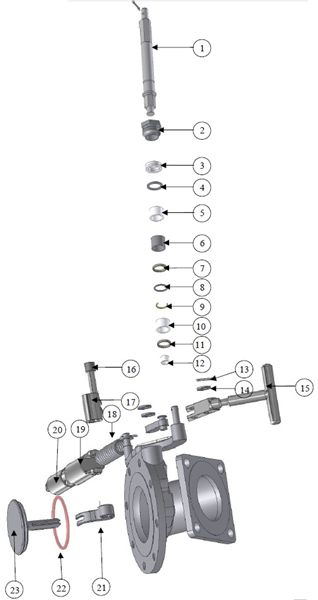

Dwg Pos Part # Description PU IT Price/Item
  NF33A1 Complete 30° 1 FOV /each
  NF34A2 Complete 45° 1 FOV /each
1 1111249700 Spindle 1
FOV /each
2 3 4 5 6 7 8 9 10 11 12
1111249500 Spindle Seals Kit
1
FOV /each
13 14 15
1111249300 Handle Kit
1
FOV /each
16 17 18 19 20
1111149912 MKII Spring System Kit
1 FOV /each
21
1111249902 Cam
1 FOV /each
22
7010150053 Poppet Seal
1 FOV /each
22 23 1111279200 O-Ring + Poppet
1
FOV /each
21 22 23 1111279500 Cam + Poppet Kit
1
FOV /each


Dwg Pos: Drawing Position • PU: Packing Unit • IT: Item Type
