FOOT VALVES - Neatco™ 3" 45º MKI Assembly



Perolo fully assembled and tested - incorporates one NEATCO™ 3"45 MKI Assembly foot valve, one TANKFLY™ 3” butterfly valve and one 3” BSP threaded outlet with cap. It is designed for use on tank containers, road tankers, rail tank cars and static tanks for loading and unloading liquids while preventing any risk of leakage.




Features :


  • Inlet flange angled at 45º
  • 8 Holes, 14 mm on a PCD of 178 mm, valve mechanism in the tank
  • Side operated handle
  • Oulet flange 4 holes, 18 mm on PCD of 160mm
  • 316 SS Electro polish
  • Main seal FEPencapsulated O-ring
  • Handle/Spindle seals PTFE and FEP   encapsulated O-ring
  • Weight 7.2 kg
  • Test Pressure 10 Bar (145 PSI)
  • Design Pressure MAPW 4 Bar (58 PSI)
  • Design Temperature 205ºC ( 401ºF)

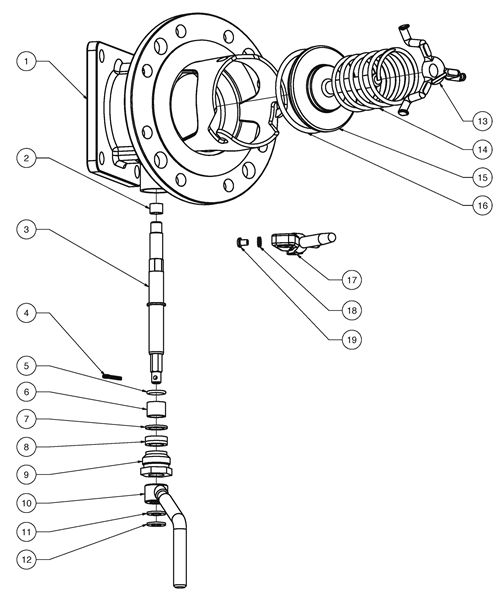

Dwg Pos Part # Description PU IT Price/Item
1 N34115A1 Complete 1
FOV /each
2 5 6 7 8 9 1285389100 Spindle packing set complete 1
FOV /each
3 1111140005 Spindle 1
FOV /each
4 10 11 12 1285249300 Operating handle Kit 1
FOV /each
13 1111140002 Bayonnet Cap 1
FOV /each
14 1285380002 Spring 1
FOV /each
15 16 1111149700 Pressure plate + O-Ring (MKI)
1
FOV /each
17 18 19 1111149800 Crank block assembly (MKI)
1
FOV /each


Dwg Pos: Drawing Position • PU: Packing Unit • IT: Item Type
