Airline ATCO™ 3" Flanged DN40 Full Bore

Features:
• 316L stainless steel construction
• PTFE and TFM gaskets and FEP/Silicone O’rings
• Double sealing
• Compact design
• Light weight: 12.5kg
• Easy maintenance
• Controlled tightening of the ball PTFE seal assembly
• Single seal design on both sides of the ball
• Compatible with standard interface for pneumatic actuator
• Clockwise or anti-clockwise operation available
• Working pressure: 16 bar
• Test pressure: 24 bar
• Design temperature: +190°C
• Pressure gauge connection
• Sealing
• HALAR® coating option available.
• Steam heating system option available.
• IMDG/ADR §6.7 conformity - E 14432 certified

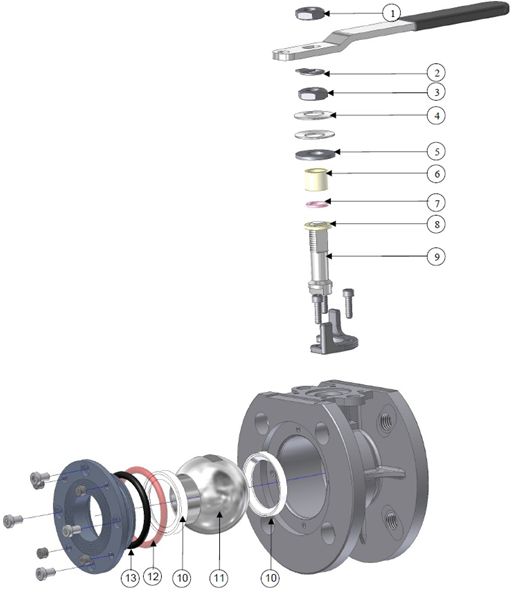

Pos Part # Description PU IT Prix
  AF4X16T110000 3'' Complete 1 BAV /each
11 1112829200 Ball 1 BAV /each
10 12 13
1112529100 Ball seals kit 1 BAV /each
9 1112520008 Spindle 1 BAV /each
7 8 1112529300 Spindle seals kit 1 BAV /each
1 2 3 4 5 6 7 8 9
1112399600
Spindle Kit 1 BAV /each
