FOOT VALVES - Twinflow™ MKII 3"



Perolo fully assembled and tested - incorporates one TWINFLOW™ 3"30°/45° foot valve, one TANKFLY™ 3” butterfly valve and one 3” BSP threaded outlet with cap. It is designed for use on tank containers, road tankers, rail tank cars and static tanks for loading and unloading liquids while preventing any risk of leakage.





Features :


  • High flow rate which achieve short discharge time
  • High quality casting technology
  • High quality material 316 SS
  • Light in weight 8.8 Kg (18 lb)
  • Test Pressure 10 Bar (145 PSI)
  • Design Pressure MAWP 4 Bar (58 PSI)
  • Design Temperature 205ºC (401ºF)
  • USA model showed
  • Patent Pending

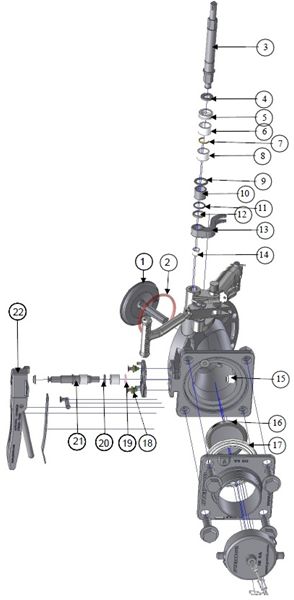

Dwg Pos Part # Description PU IT Price/Item
  VTFS34CR Complete 45° 1 FOV /each
2 7010150053 Poppet O-Ring 1
FOV /each
1 2
1111249901 Poppet + O-Ring
1
FOV /each
13
1111839200 Pusher Kit
1
FOV /each
3 4 5 6 7 8 9 10 11 12 14
1111279907 Footvalve Spindle Kit
1 FOV /each
4 5 6 7 8 9 10 11 12 14
1111839100 Footvalve Spindle Seals Kit
1 FOV /each
15
1285570004 Closure Plate Bush
1 FOV /each
16
1285572000 Closure Plate
1
FOV /each
15 16
1285579300 Closure Plate Kit
1
FOV /each
17 1285570001 Butterfly Valve Closure Plate Seal 1 FOV /each
18 19 20 1285579600 Butterfly Valve Spindle Seals Kit 1 FOV /each
21 1285579700 Butterfly Valve Spindle Kit 1 FOV /each
22 1111739100 Butterfly Valve Handle Kit 1 FOV /each
