FOOT VALVES - Neatco™ 3" 45º MKII Assembly

 Features

  • Inlet flange angled at 30º
  • 4 Holes, 18 mm on a PCD of 160mm, valve mechanism in the tank
  • Side operated handle
  • Outlet flange 8 holes, 14 mm on a PCD of 178mm
  • 316 SS Electro polish
  • Main seal FEP encapsulated O-ring
  • Handle/Spindle seals PTFE and FEP encapsulated O-rings
  • Weight 8 kg
  • Test Pressure 10 Bar (145 PSI)
  • Design Pressure MAPW 4 Bar (58 PSI)
  • Design Temperature 205ºC ( 401ºF)

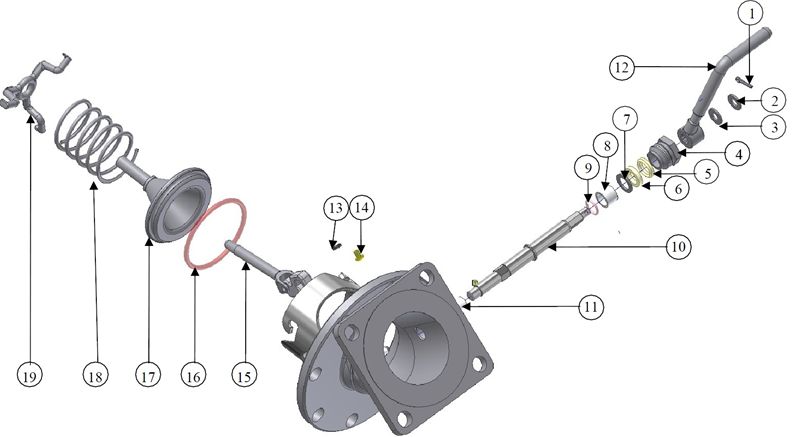

Dwg Pos Part # Description PU IT Price/Item

N33115B1 Complete 1
FOV /each
1 3 4 5 6 7 8 9 10 11 1111149907 Spnidle Kit Complete 1 FOV /each
1 3 4 5 6 7 8 9 11
1285389100 Spindle Seals Kit
1
FOV /each
10 1111149900 Spindle 1
FOV /each
10 13 14 15 1111149500 Spindle + Crank Block Assembly 1 FOV /each
1 2 12
1285249300 Handle Kit
1
FOV /each
19 1111140002 Bayonnet Cap 1
FOV /each
18 1285380002 Spring 1
FOV /each
16 17
1111149700 Pressure plate + O-Ring 1
FOV /each
13 14 15
1111149800 Crank block assembly 1
FOV /each
13 14 15 16 17 1116019100 Pressure Plate + O-Ring + Crank Block Assembly 1 FOV /each
