Airline ATCO 1" 1/2" MKII



 Features

  • 1 1/2" BSP male inlet
  • Pressure gauge connection and TIR facility to handle
  • 316 SS with PTFE seals
  • Weight 2 kg
  • Test Pressure 12,5 Bar (180 PSI)
  • Design Pressure MAWP 6.9 Bar (100 PSI)
  • Design Temperature 190°C (374°F)
  • E 14432 certified

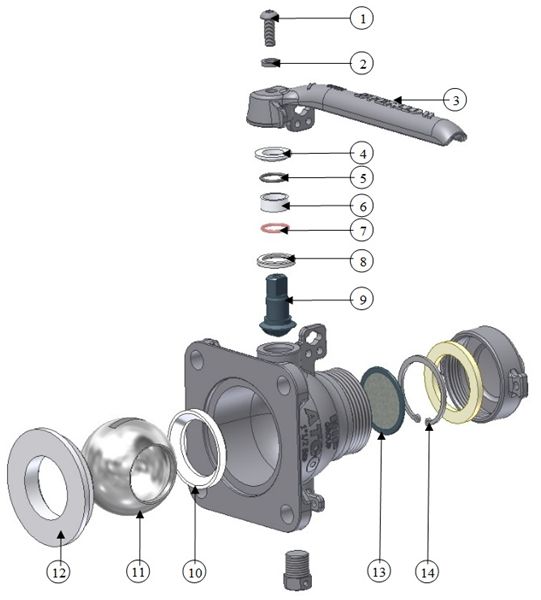

Dwg Pos Part # Description PU IT Price/Item
  AD3X6T21CS21 Complete with cap
1 BAV /each
3 1296080015 Handle 1 BAV /each
9
1114020002 Spindle 1 BAV /each
4 5 6 7 8
1191060000 Spindle seals kit 1 BAV /each
11

1114010003

1296060009

Ball (MKII)

Ball (MKI & MKII)

1

BAV /each
12
1114010004 Front Ball Seal 1 BAV /each
10 1114010001 Rear Ball Seal 1 BAV /each
13 1291940000 Gauze Filter 1 BAV /each
