Airline ATCO™ 3''-2'' DN50 FULL BORE

Features:

• 316L stainless steel construction
• PTFE and TFM gaskets and FEP/Silicone O’rings
• Double sealing
• Compact design
• Light weight: 12.5kg
• Easy maintenance
• Controlled tightening of the ball PTFE seal assembly
• Single seal design on both sides of the ball
• Compatible with standard interface for pneumatic actuator
• Clockwise or anti-clockwise operation available
• Working pressure: 16 bar
• Test pressure: 24 bar
• Design temperature: +190°C
• Pressure gauge connection
• Sealing
• HALAR® coating option available.
• Steam heating system option available.
• IMDG/ADR §6.7 conformity - E 14432 certified

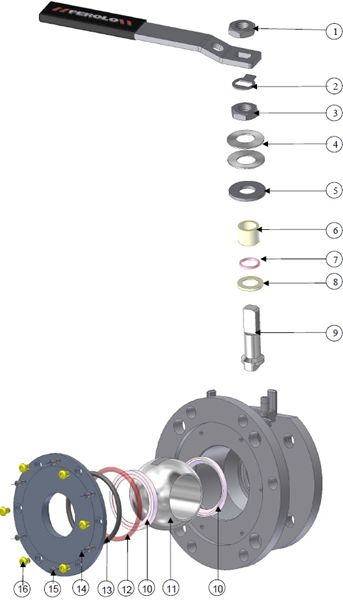

Pos Part # Description PU IT Price
  AH5X16T1200000 Complete 1 BAV /each
11 1112429100 Ball 1 BAV /each
10 12 13
1112429200 Ball Seals kit
1 BAV /each
10 1112390009 Ball Seal 1 BAV /each
9 1112390010 Spindle 1 BAV /each
6 7 8
1112429300 Spindle seals kit 1 BAV /each
1 2 3 4 5 6 7 8 9 1112399600 Spindle kit complete 1 BAV /each
10 12 13 14 15 16 1112429400 Ring Clamp kit 1 BAV /each
  1112390022 Handle 1 BAV

/each
