FOOT VALVES - Neatflow™ MKI 3” 30°/45° Assembly



Perolo fully assembled and tested - incorporates one NEATFLOW™ 3"30°/45° MKI foot valve, one TANKFLY™ 3” butterfly valve and one 3” BSP threaded outlet with cap. It is designed for use on tank containers, road tankers, rail tank cars and static tanks for loading and unloading liquids while preventing any risk of leakage.



Features :




  • High flow rate which achieve short discharge time
  • High quality casting technology
  • High quality material SS 316L
  • Light weight 8.8 kg 518 lbs)
  • Test pressure 10 bar (145 PSI)
  • Design pressure MAWP 4 bar (58 PSI)
  • Design temperature 205°C (401°F)
  • USA Model showed
  • Patent Pending

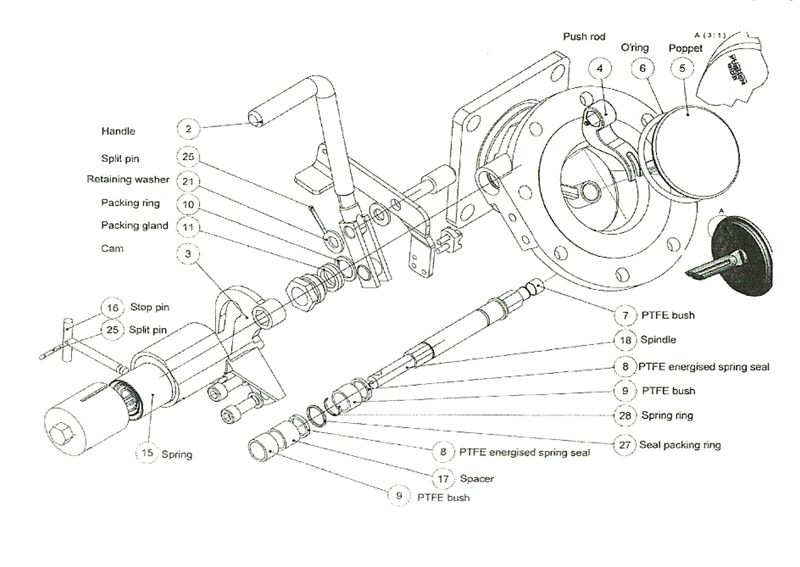

Dwg Pos Part # Description PU IT Price/Item
5 7010150053 O'ring 1 FOV /each
2 1111700A08 Handle 1 FOV /each
5 6 1111249901 Poppet + O'ring 30° (MKI)
1 FOV /each
5 6 1111279200 Poppet + O'ring 45° (MKI)
1 FOV /each
4 5 6 1711019600 Poppet + O'ring + Crank block 30° (MKI)
1 FOV /each
4 5 6 1111279500 Poppet + O'ring + Crank block 45° (MKI)
1 FOV /each
6 1111249902 Crank block (MKI)
1 FOV /each
8 28 1111279400 Spring ring + PTFE seal 1 FOV /each
 7 -> 11, 17 27 28 1111249500 Spindle packing kit 1 FOV /each
18 1111249700 Spindle 1 FOV /each
15 25 1111249800 Spring + Split pin MK1 1 FOV /each
16 25 1111249900 Stop + Split pin MK1 1 FOV /each
  1111709200 Upgrade Kit MK1 -> MK2 with spindle 1 FOV /each
