 FOOT VALVES - Chemflow™ 3" Pneumatical



The Perolo CHEMFLOW™ 3" foot valve is designed for use on tank containers for loading and unloading liquids while preventing any risk of leakage.









Features




• FEP / PTFE seals
• Footvalve spring outside the tank allows easier cleaning
• Valve maintainable when fitted on tank
• Improved discharge times thanks to peripheral flow around the valve poppet
• Shear groove breaking system
• Double tightness on spindle
• Low weight and compact design
• Easy to maintain




Specifications :


• Inlet flange angled at 90°
• Inlet flange drillings: 8 x 14mm on PCD178mm
• FEP/PTFE seals
• 316L 1.4408 & 1.4404 stainless steel construction
• Working pressure: 3 bar
• Test pressure: 4 bar
• Drive air pressure: 4 to 10 bar
• Design temperature: -40°C +190°C
• Weight: 9.25kg

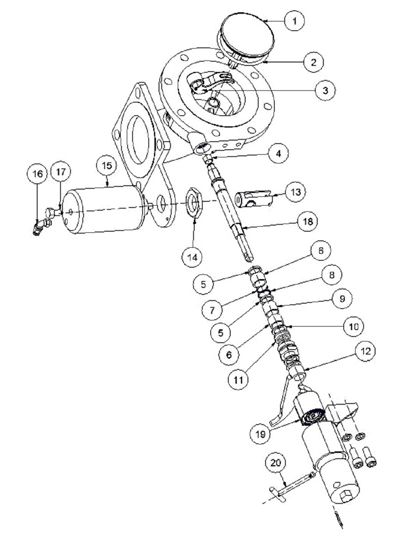

Dwg Pos Part # Description PU IT Price/Item
  CF391RC Complete Pneumatical 1 FOV /each
  CF391RM Complete Manual 1 FOV /each
2 7010150053 O’ring 1 FOV /each
1 2 3 1711019600 Crank Block kit 1 FOV /each
1 2 1111249901 Poppet kit 1 FOV /each
3 1111249902 Crank Block 1 FOV /each
5 7 1111279400 PTFE spring seal (2) + Spring ring 1 FOV /each
5 -> 11 1111249500 Spindle Packing set 1 FOV /each
18 1111249700 Spindle 1 FOV /each
19 1111249800 Spring + Split pin FOV  /each
20 1111249900 Stop + Split pin  FOV /each
14 15 1711019500  Actuator kit FOV /each
  1111700200 Spring kit MK2  FOV  /each
  1111709200 Upgrade kit MK1 -> MK2 with Spindle 1 FOV /each


Dwg Pos: Drawing Position • PU: Packing Unit • IT: Item Type
