FLANGES - 3'' 30° & 45° Tank Bottom 316L Weld-in Flanges





 Specifications:

  • 316L Stainless steel construction
  • Nominal Diameter 3''
  • Internal angle 45° or 30°
  • Radiused angles
  • Serrated gasket contact area

Features:

  • Other diameter weld-in flanges
  • Other angles
  • Alternative material (Aluminium, 304L, 904L...)
  • Adaptor flanges & Blind flanges
  • Screw kits
  • Gaskets
  • HALAR coating for corrosive products


Image Description

Ext  Diam

Int  Diam Thick Drillings  Angle Part # PU IT Price/Item

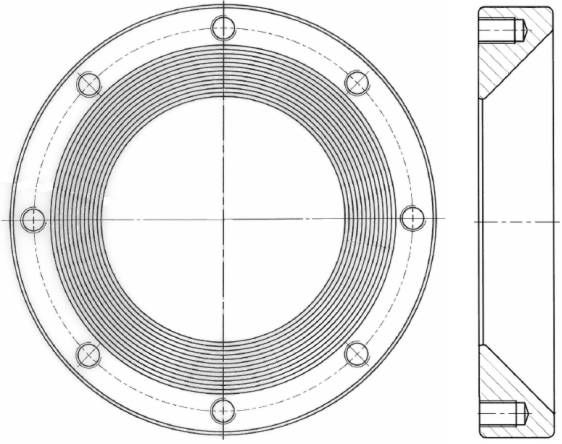

45° Tank Bottom Weld-in Flange 200mm 114.3mm 35mm 8xM12PCD178mm 45° 1190590000 1 FLA /each

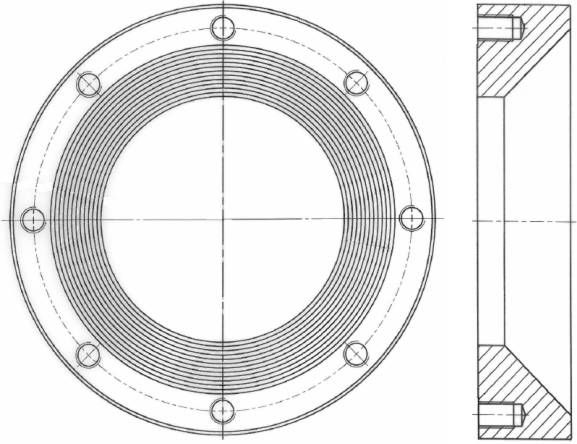

45° Tank Bottom Weld-in Flange 200mm 114.3mm 45mm 8xM12PCD178mm 45° 1190940000 1 FLA /each

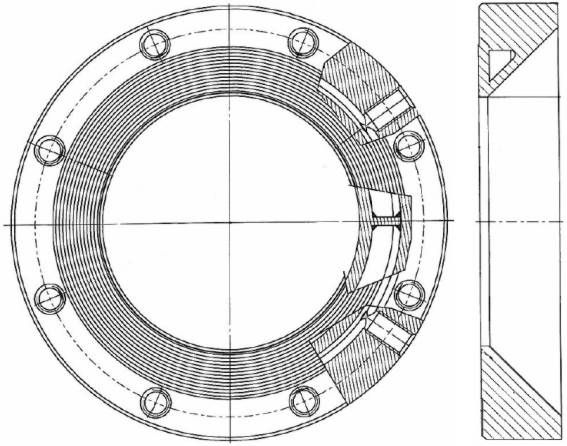

45° Tank Bottom Weld-in Flange

Steam Heated

200mm 114.3mm 35mm 8xM12PCD178mm 45° 1190640000 1 FLA /each

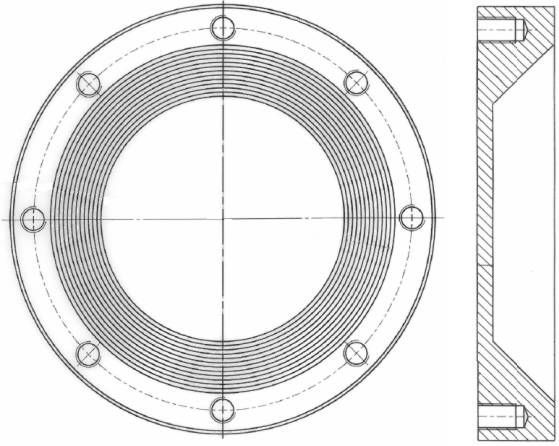

45° Tank Bottom Weld-in Flange 200mm  Blind Provision 36mm 8xM12xPCD178mm 45° 1190580000 1 FLA /each

45° Tank Bottom Weld-in Flange

(includes 8xHM12-20 tack welded screws)

200mm  Blind Provision
35mm 8xM12xPCD178mm 45° 1190460000 1 FLA /each

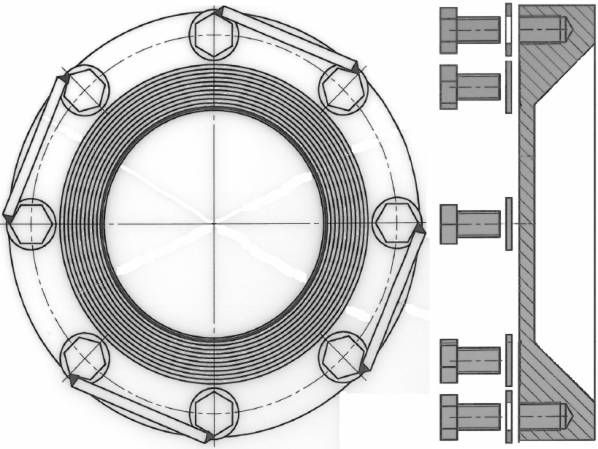

45° Tank Bottom Weld-in Flange

(includes 8xHM12-20 tack welded screws & 8ea. washers)

200mm Blind Provision
35mm 8xM12xPCD178mm 45° 1190589100 1 FLA /each

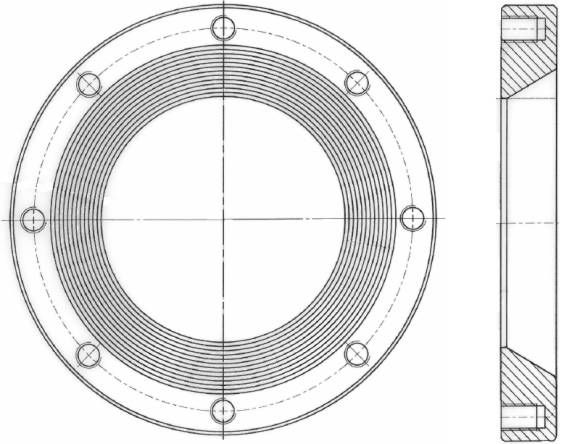

30° Tank Bottom Weld-in Flange 200mm 114.3mm 26.5mm 8xM12xPCD178mm 30° 1291170000 1 FLA /each

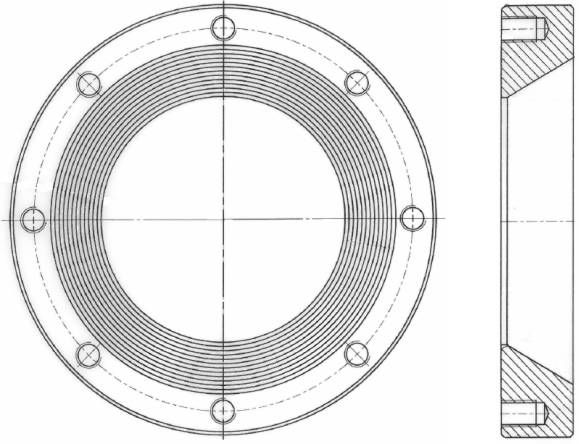

30° Tank Bottom Weld-in Flange 200mm 114.3mm 35mm 8xM12xPCD178mm 30° 1191160000 1 FLA /each

30° Tank Bottom Weld-in Flange

Steam Heated

200mm 114.3mm 45mm 8xM12xPCD178mm 30° 1192210000 1 FLA /each

30° Tank Bottom Weld-in Flange

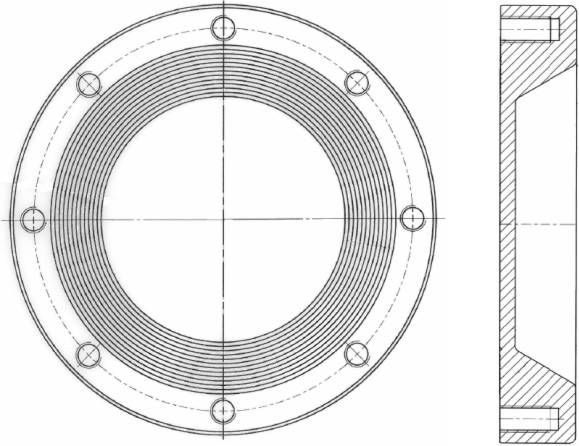

200mm Blind Provision 35mm 8xM12xPCD178mm 30° 1191910000 1 FLA /each

30° Tank Bottom Weld-in Flange

(includes 8xHM12-20 tack welded screws)

200mm Blind Provision
35mm 8xM12xPCD178mm 30° 1191940000 1 FLA /each

• PU: Packing Unit • IT: Item Type
