FLANGES - 2.1/2" & 3" Tank Top 316L SRV Weld-in Flanges

Perolo 2.5" & 3" Tank Top 316L SRV Weld-in Flanges are to be welded on top of tank containers, IBC’s, road tankers, rail tank cars and storage tanks in order to fit safety relief valves.

Features :

• 316L stainless steel construction
• Drillings depending on application
• Radiused angles
• Serrated gasket contact area

Options & Related Products :

• HALAR coating for corrosive products
• Other materials (Aluminum, 304L, 904L…)
• Adaptor flanges & blind flanges
• Screw kits
• Gaskets

Description	Ext Diam	Int Diam	Thick	Drillings	Part #	PU	IT	Price/Item

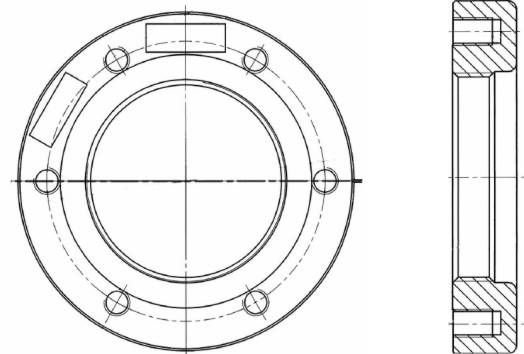

Tank Top SRV Weld-in Flange	127mm	2.5" BSP threaded	22mm	6xM10xPCD105mm	1291140000	1	FLA	/each

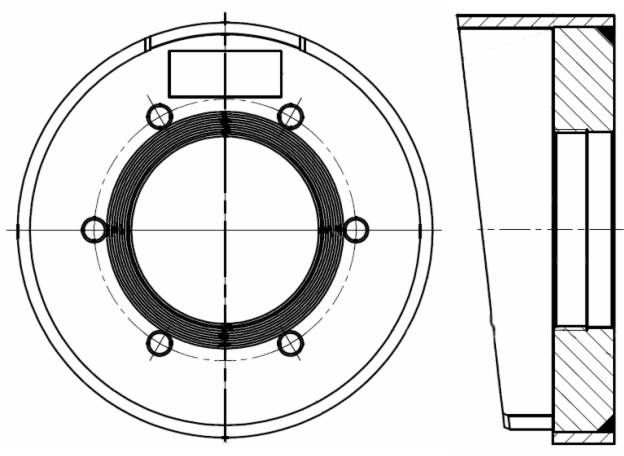

Tank Top SRV Weld-in Flange Recessed	166.5mm	2.5" BSP threaded	Min:22mm Max:61mm	6xM10xPCD105mm	1292140000	1	FLA	/each

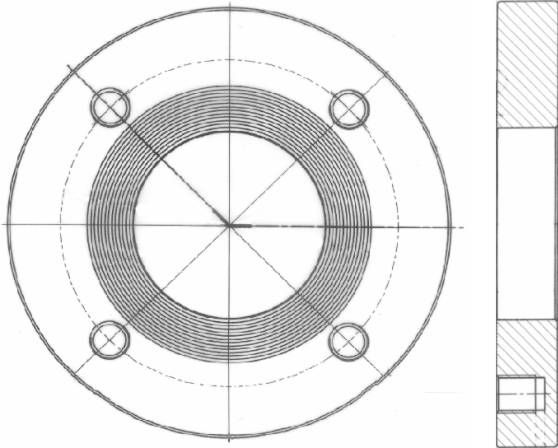

Tank Top SRV Weld-in Flange	190mm	82mm	26mm	4xM16xPCD145mm	1192030000	1	FLA	/each

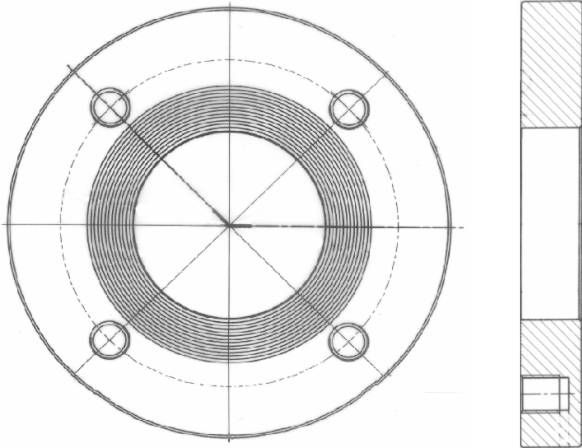

Tank Top SRV Weld-in Flange	190mm	82mm	26mm	4xM16xPCD152.4mm	1190150000	1	FLA	/each

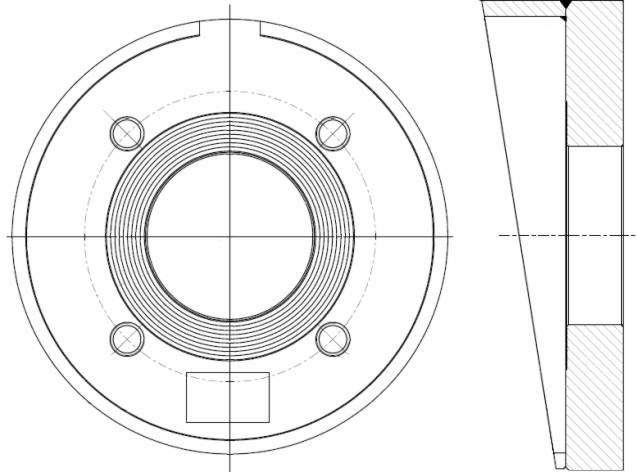

Tank Top SRV Weld-in Flange Recessed	217mm	82.6mm	Min:31mm Max:65mm	4xM16xPCD145mm	1190630000	1	FLA	/each

• PU: Packing Unit • IT: Item Type
